45 x 48-2 MI SBRR CISS LP

45X48-2_SBRR_MI_CISS_LP_.250_3Q_BLK
45X48-2_SBRR_MI_CISS_LP_.250_TOP_BLK
45X48-2_SBRR_MI_CISS_LP_.250_SS_BLK
45X48-2_SBRR_MI_CISS_LP_.250_LS_BLK
45X48-2_SBRR_MI_CISS_LP_.250_BOT_BLK
45X48-2_SBRR_MI_CISS_LP_.250_3Q_BLK
45X48-2_SBRR_MI_CISS_LP_.250_TOP_BLK
45X48-2_SBRR_MI_CISS_LP_.250_SS_BLK
45X48-2_SBRR_MI_CISS_LP_.250_LS_BLK
45X48-2_SBRR_MI_CISS_LP_.250_BOT_BLK

Descripción

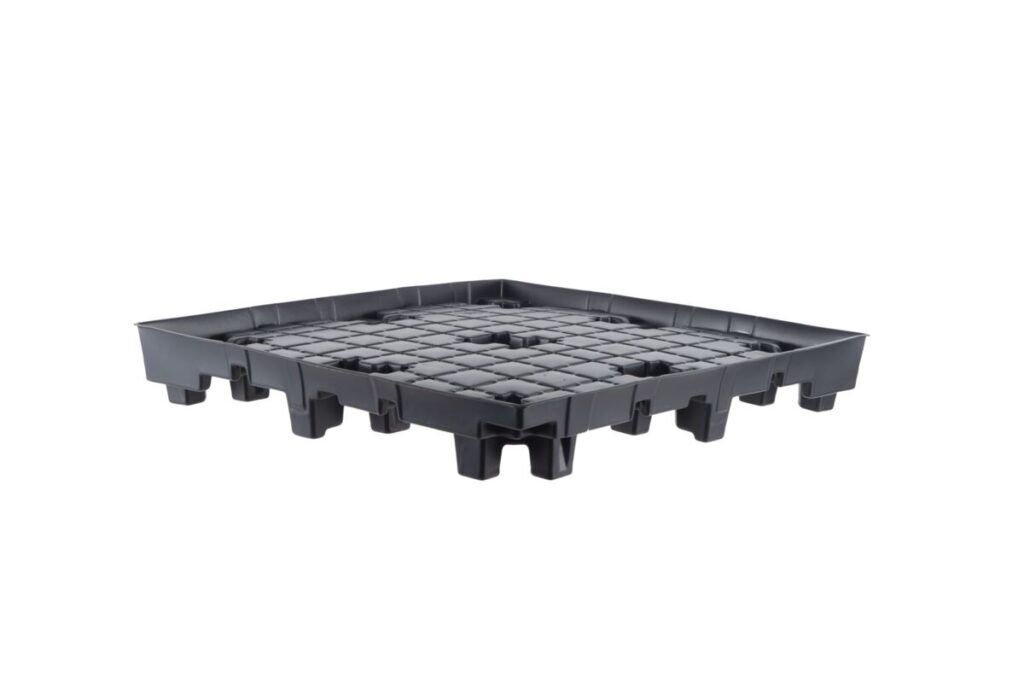

La tarima ORBIS 45 x 48-B MI SBRR CISS LP .250GA permite mover, almacenar y distribuir cargas de productos dentro de la cadena de suministro industrial. Se basa en la norma 45 x 48 AIAG. Desde el material sin procesar hasta el producto terminado, las tarimas reutilizables de plástico protegen el producto hasta que llega a su destino final. Estando vacías, estas tarimas se anidan para ofrecer un viaje de regreso o almacenamiento económico. Su consistencia dimensional asegura la interconexión sin forzamiento con todo tipo de equipos de automatización a alta velocidad y manejo de materiales. Las tarimas anidables ORBIS son ligeras y fáciles de manejar, sin clavos, astillas ni tablas rotas que presentan riesgo de lesiones para el empleado. Esta tarima ofrece una alternativa económica, ecológica y eficiente a las tarimas de madera o patines.

  • Termoformada de hoja individual (HMWPE)
  • Reciclable
  • Diseño de imagen de espejo que permite que la tarima se use como tapa superior
  • Entrada para horquilla montacargas: 4 vías
  • Entrada para patín manual: 4 vías

Información adicional

Peso 21 lbs
Dimensiones 49.4 × 46.4 × 7.6 in
Outside Length (in.)

49.4
Outside Width (in.)

46.4
Inside Length (in.)

48.2
Inside Width (in.)

45.2
Height (in.)

7.6
Weight (lb.)

21
Relacion de anidado

1.9:1
Static Load Capacity (lb.)

15000
Dynamic Load Capacity (lb.)

2500
Truckload Qty 53 ft. Trailer

754
Download Product Information

Opciones

Molded-In Logo

Molded-In Logo identification is a type of permanent identification that is molded into product. Original artwork must be supplied to ORBIS at the time of the order. Availability, requirement, and location for the molded-in identification can vary for each product.

Pallet Hot Stamp

Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your pallet. These plates are designed for durability and a long service life. Availability, requirement, and location of the identification plates can vary for each pallet.

Vinyl Labels

Vinyl Labels are flexible plastic labels with adhesive backing that affix securely to your pallet. These long lasting labels are for use on all ORBIS thermoformed (HMWPE) pallets. Availability, requirement, and location for the vinyl labels can vary for each pallet. *Special vinyl labels are now available for some structural foam pallets. Please contact ORBIS for details.

Custom Color Striping

Custom Color Striping is available on most thermoformed pallets and thermoformed OPTE Pallets to provide a unique identification alternative. Standard stripe widths are two and four inches. Stripe color must be specified at the time of the order and requires minimum order quantities.

Seat Belt Assemblies

Seat Belt Assemblies attach to the pallet and top cap to effectively secure pallet loads. ORBIS' innovative seat belts accommodate high stack loads and will not twist, tangle or jam. Retractors are typically located in the pallet legs and the buckles are installed on the top caps.
