HDMP4845-34
Contacte a su experto de ORBIS

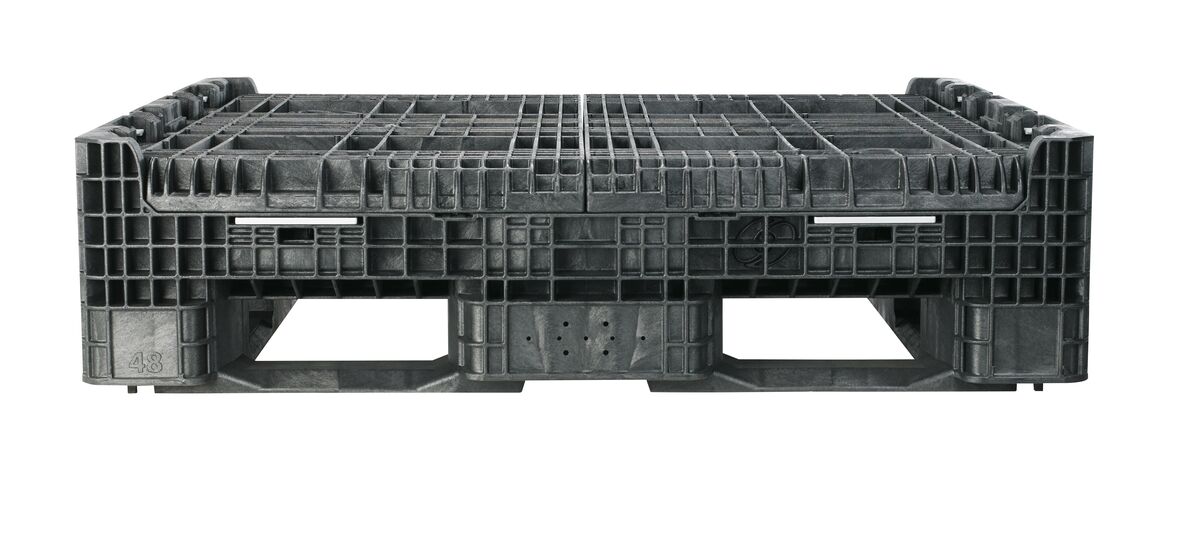

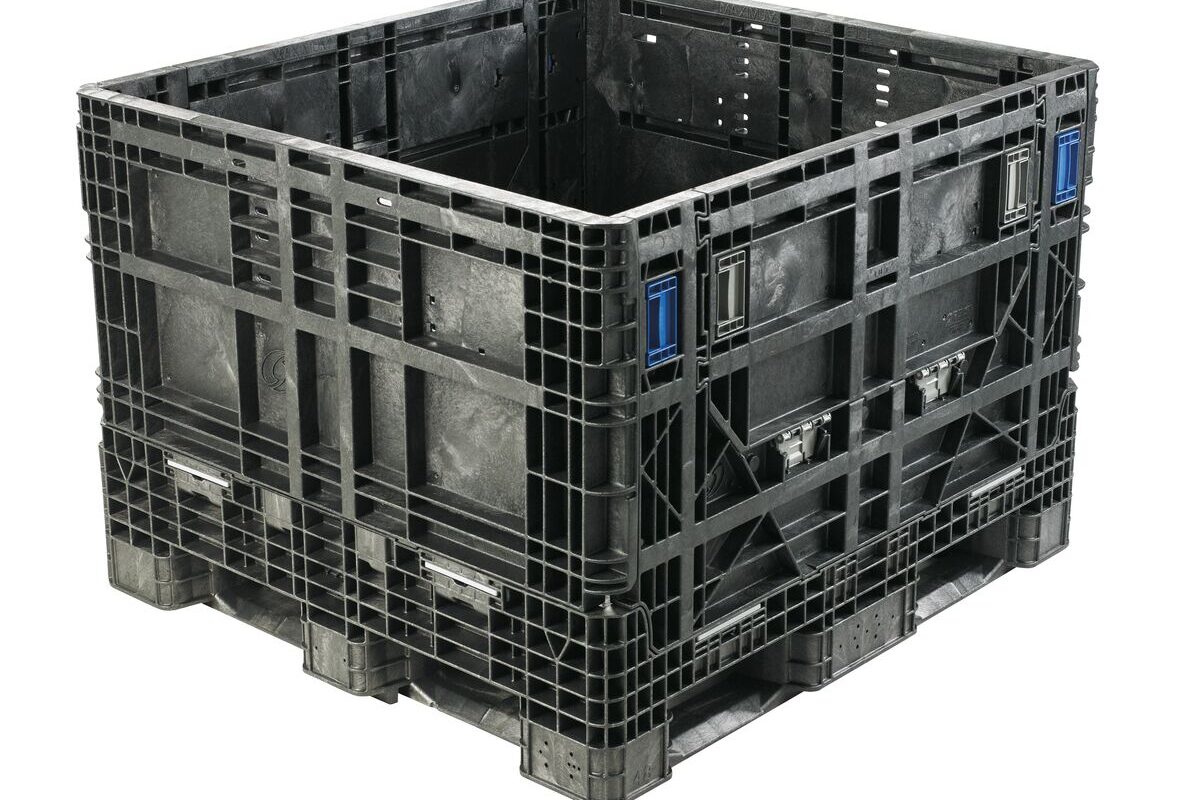

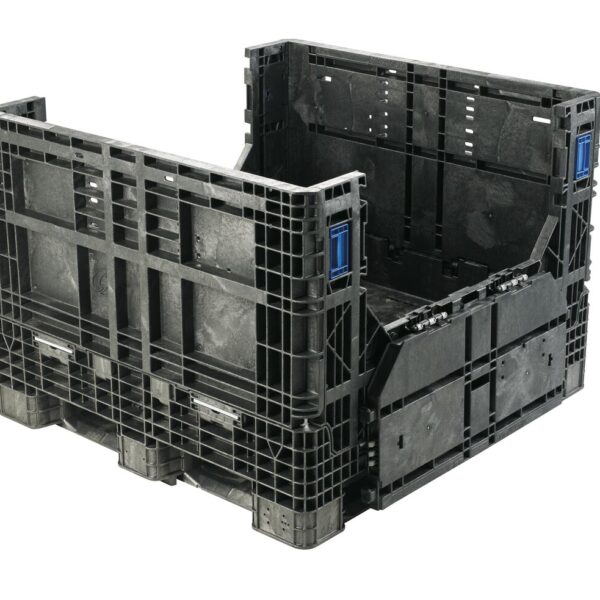

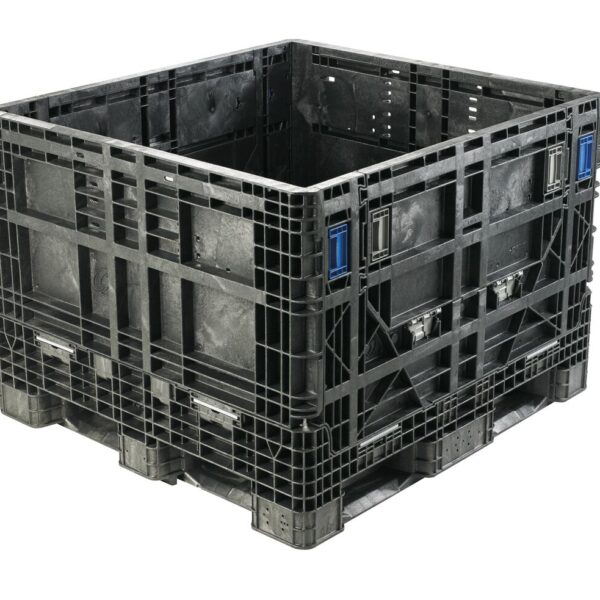

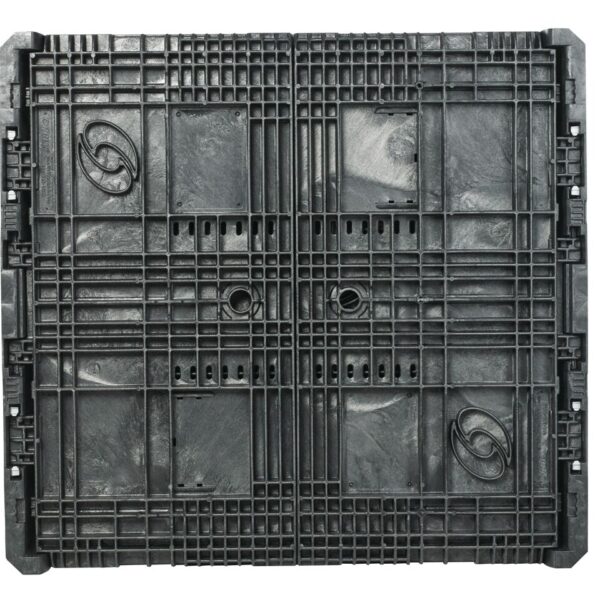

De el primer paso hacia una cadena de suministro y un negocio mas sustentable. ORBIS Corporation ha introducido un nuevo contenedor bulk retornable, el HDMP4845-34,diseñado para acomodar112 contenedores llenos por carga de transporte interno y252 contenedores colapsados por carga de transporte de retorno. Los nuevos contenedores BulkPak HDMP4845 Series se estiban fijamente cuando están llenos y se colapsan cuando están vacíos para bajos costos de transporte de retorno y almacenamiento condensado. Disponibles en dos alturas (27.0″ y 34.0″), estascajas de tarimaofrecen 1,800 capacidades de carga. El HDMP4845-34 es de un único tamaño, disponible únicamente de ORBIS y ofrece 10% más capacidad interna que los contenedores comparables. Relleno interior protector hecho a la medida disponible para todos los contenedores ORBIS BulkPak.
|
Especificaciones
| Outside Length In | 48 |
| Outside Width In | 44.5 |
| Outside Height In | 34 |
| Inside Length In | 44.6 |
| Inside Width In | 41.5 |
| Prod Clearance In | 27 |
| Collapsed Height In | 12.4 |
| Container Capacity Lb | 1800 |
| Weight Lb | 134 |
| Maximum Loaded Stack Static | 6 |
| Maximum Loaded Stack Dynamic | 3 |
| Return Ratio | 2.9 |
| Door Openings Long H In | 15.4 |
| Door Openings Long W In | 31.5 |
| Internal Volume Cu Ft | 28.7 |
| 53ft Trailer Qty Assembled | 84 |
| 53ft Trailer Qty Collapsed |
Cardholders
Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
ID Plates
Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
Placard Boards
Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
