44 x 56 End-Pal

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

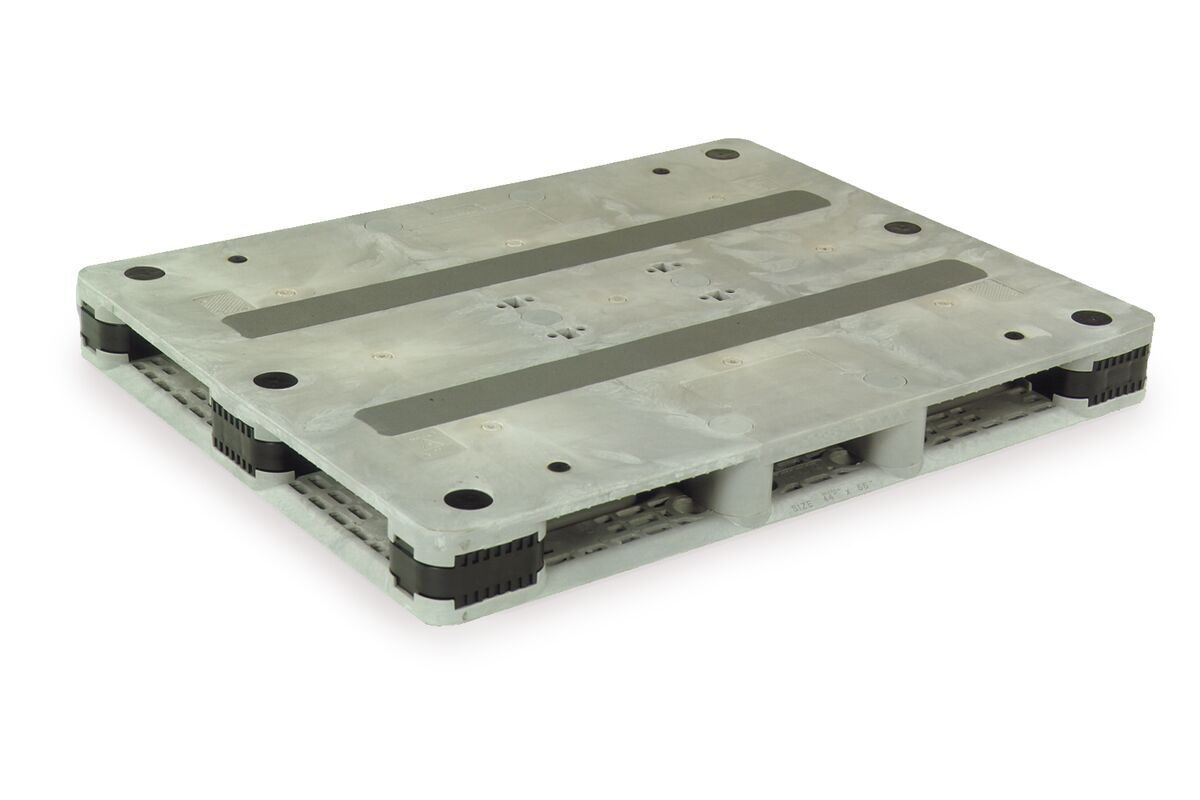

The ORBIS 44 x 56 End Pallet is designed for handling and shipping cans and bottles in the beverage and food industries. These reusable plastic pallets offer a long service life and are ideal for stack loading, conveying systems, distribution, and static storage. The non-porous, smooth design makes these pallets easily cleanable. These beverage pallets offer an economic, environmental, and efficient alternative to wood pallets or skids.

  • Available in FDA-approved material
  • Solid deck surface with minimum openings
  • Designed to convey can ends and other rigid packages
  • Compatible with many palletizers, depalletizers, conveyors, and automatic strapping systems
  • Heavy-duty connectors to support heavy loads
  • Connector plugs for added strength
  • Optional deck grommets available (qty:4)
  • Anti-skid friction tape
  • Structural foam molded
  • Recyclable
  • Top Frames and Divider Sheets available for additional load stability and product protection
  • Tapered 4-way entry

Specifications

Outside Length In 56
Outside Width In 44
Height In 5.5
Weight Lb 70
Static Load Capacity Lb 33000
Dynamic Load Capacity Lb 3800
Truckload Qty 53ft Trailer 475

Options

Pallet Hot Stamp

Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.

Molded-In Logo

Molded-In Logo identification is a type of permanent identification that is molded into product. Original artwork must be supplied to ORBIS at the time of the order. Availability, requirement, and location for the molded-in identification can vary for each product.

Deck Grommets

Rubber gromments installed in pre-determined locations on the pallet deck, to prevent load shifting.

Anti-Skid Friction Tape

Frictional tape permanently applied to pallet deck to create anti-skid properties.

Compatible With

Divider Sheet: Aluminum Can-2424

Size (IN) : 44  x  56  x

Divider Sheet: PET Bottle-2426

Size (IN) : 44  x  56  x

Divider Sheet: Steel Can-2425

Size (IN) : 44  x  56  x

44 x 56 HP Top Frame-224

Size (IN) : 44  x  56  x  1

44 x 56 x 4 Top Frame (Center STR)-225

Size (IN) : 44  x  56  x  1.25

44 x 56 x 4 Top Frame (No STR)-226

Size (IN) : 44  x  56  x  1.25

44 x 56 x 6 Top Frame (No STR)-228

Size (IN) : 44  x  56  x  1.25

44 x 56 x 6 Top Frame (Center STR)-227

Size (IN) : 44  x  56  x  1.25
