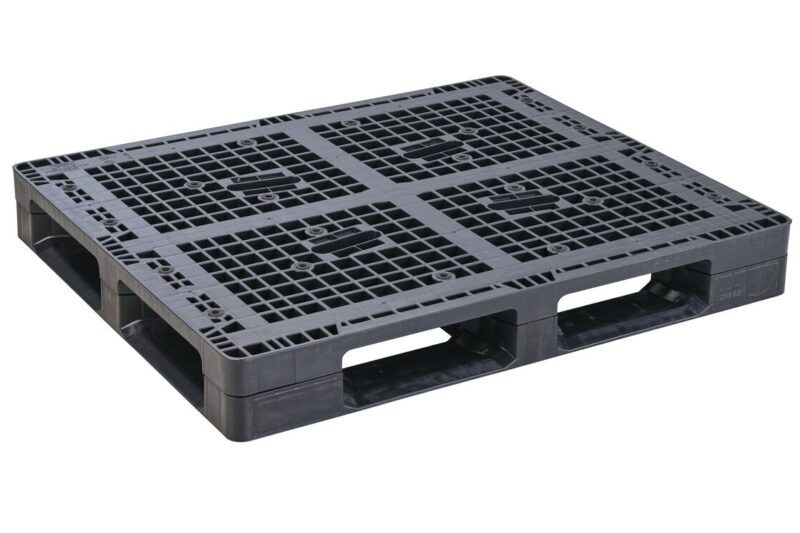

40 x 48 ODYSSEY SD OPEN DECK
The new 40 x 48 Odyssey SD Open Deck Pallet provides load stability with unique design features, including optional steel reinforcements and permanent molded-in frictional elements. The Odyssey is optimized for a wide variety of applications and markets, including food processing, cold storage, dry goods, agriculture, raw materials, and finished goods storage. Rackable plastic pallets optimize storage, reduce product damage that can occur from wood pallets, and offer dimensional consistency optimized for automated equipment. The truckload quantity for the Odyssey Pallet with lip is 510. ORBIS has now validated that its 40×48-inch Odyssey plastic pallet has approximately 36 times the life span of a 40×48-inch whitewood stringer pallet, according to a recent study. Researchers from the Virginia Tech Center for Packaging and Unit Load Design used the center’s FasTrack life-cycle analysis to compare relative durability. In testing, the Odyssey plastic pallet completed the sequence of 400 cycles without failure, while the wood pallet’s average failure was after 11 cycles. The FasTrack life-cycle analysis simulates the rough handling of palletized unit loads, using a multi-step handling sequence.
- Racking strength
- High strength-to-weight ratio capable of holding 2,200 lbs in unsupported racking
- Load stability
- Permanent, molded-in frictional elements minimize load shifting and do not damage product packaging
- Ergonomic, lightweight design and comfortable hand holds for easy manual handling
- Robust and highly resistant to impact from equipment, ideal for rugged applications
- Hygienic, flow-through design for easy cleanability
- Seamless conveyance
- Full stringer bottom is designed for today’s conveyors
Specifications
| Outside Length In | 48 |
| Outside Width In | 40 |
| Height In | 6 |
| Weight Lb | 42 |
| Static Load Capacity Lb | 30000 |
| Dynamic Load Capacity Lb | 4000 |
| Edge Rack Capacity Lb | 2200 |
| Supported Rack Capacity Lb | 4000 |
| Truckload Qty 53ft Trailer | 540 |
20 Frictional Elements
Permanent, molded-in elements to prevent load shifting.
Molded-In Logo
Molded-In Logo identification is a type of permanent identification that is molded into product. Original artwork must be supplied to ORBIS at the time of the order. Availability, requirement, and location for the molded-in identification can vary for each product.
Pallet Hot Stamp
Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.
Track and Trace
Offers ability to be tracked with GPS, RFID, BLE, bar code scanning or a hybrid solutions of these technologies.
1/2" Perimeter Lip
Discontinuious molded-in lip on that adds 0.5" to pallet height. Holds loads in place. Lip styles vary by pallet.
