40 X 48 ODYSSEY 3-RUNNER

Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

The efficient storage and transportation of palletized product is key to designing an effective and economical supply chain.

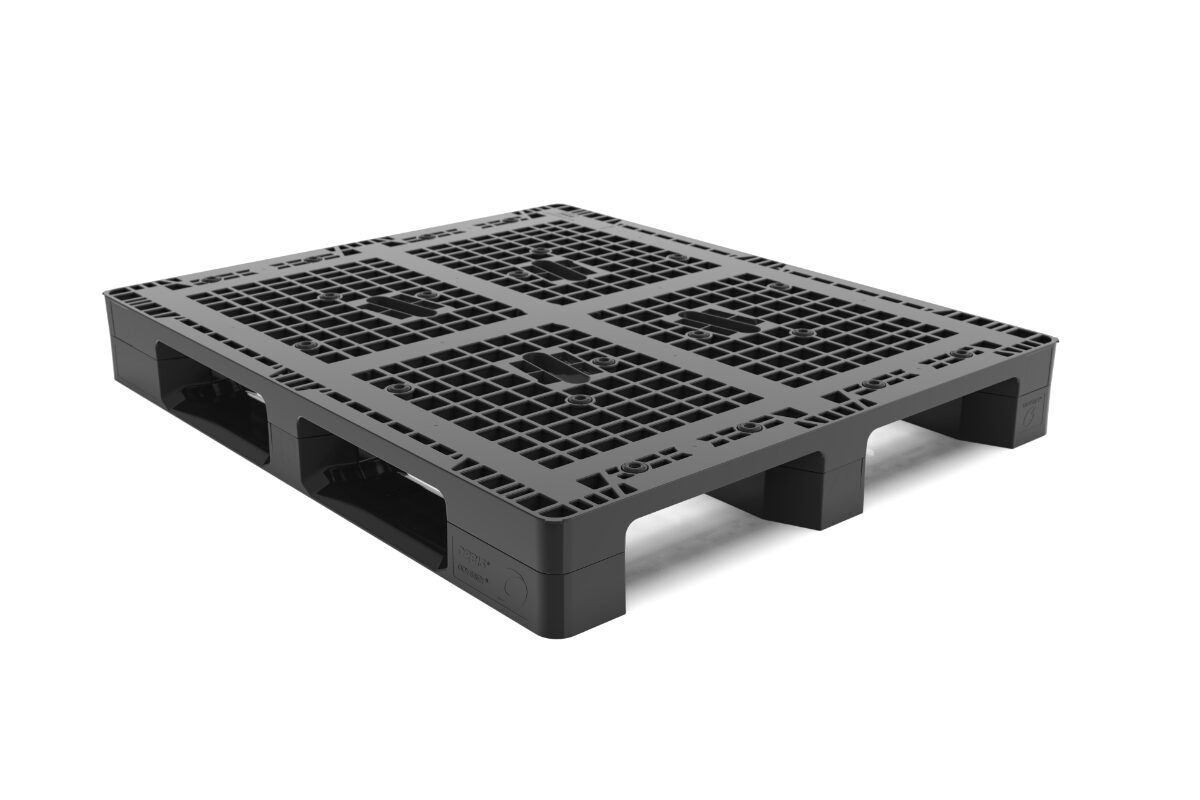

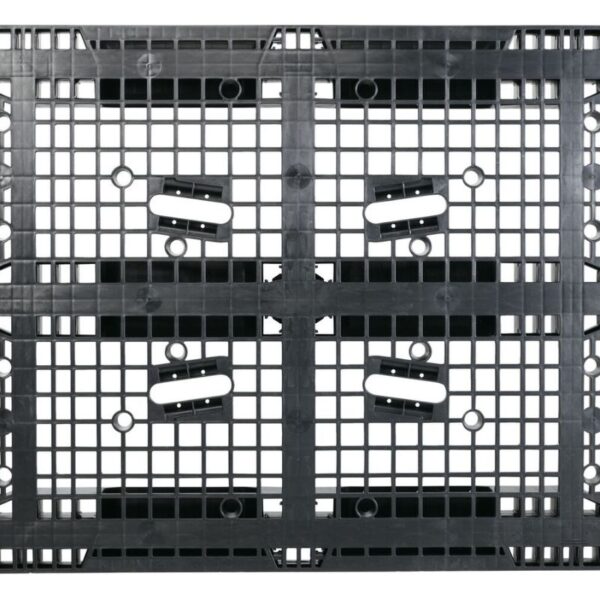

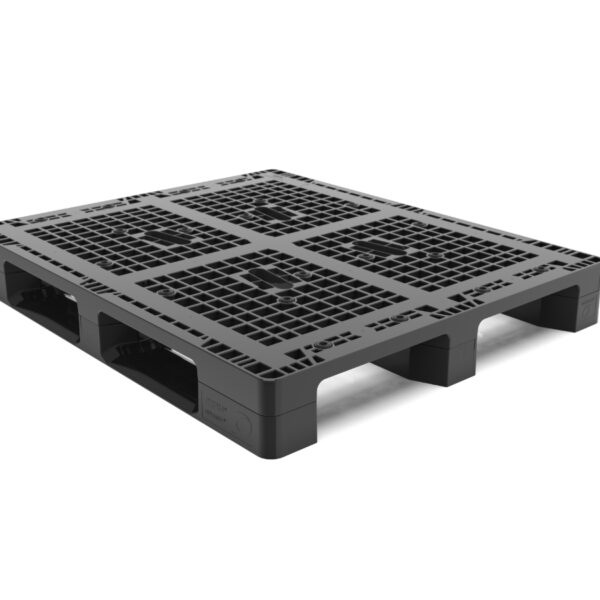

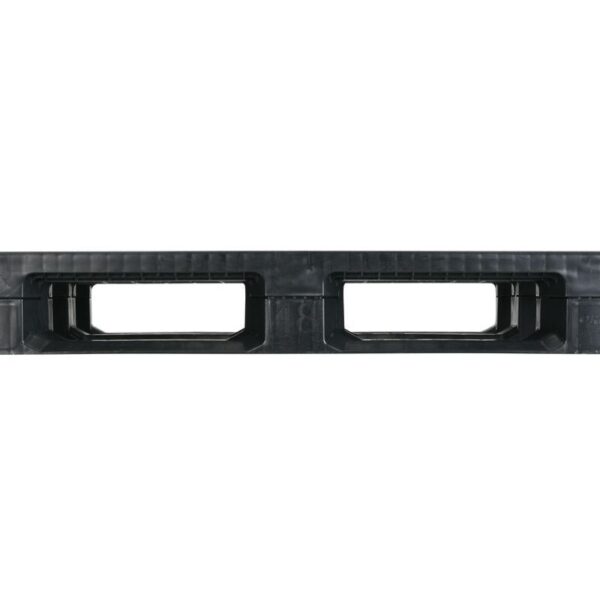

The Odyssey 3-Runner rackable pallet is a robust solution that supports heavy loads and provides load stability with unique design features, including heavy-duty steel reinforcements and permanent molded-in frictional elements. Plastic pallets are the ideal alternative to wood, as they are fully reusable and offer dimensional consistency optimized for automated equipment.

  • Replaces pooled block pallets
  • Automated excellence — Can withstand the deflection requirements of most automated systems
  • Racking strength — High strength-to-weight ratio capable of unsupported rack loads up to 3,000 including ASRS systems
  • Load stability — Permanent, molded-in frictional elements minimize load shifting and do not damage product packaging
  • Ergonomic — Lightweight design and comfortable hand holds for easy manual handling
  • Impact resistant — Robust and highly resistant to impact from equipment, ideal for rugged applications
  • Hygienic — Flow-through, hygienic design for easy cleanability

Applications

  • General food processing, including cold and frozen storage of meat, bakery, produce and dairy
  • Dry goods, including apparel, periodicals, pharmaceuticals and other consumer packaged goods
  • Receipt of raw materials and finished goods storage

Specifications

Length In 48
Width In 40
Height In 6
Weight Lb 51
Static Load Capacity Lb 30000
Dynamic Load Capacity Lb 6000
Edge Rack Capacity Lb 3000
Supported Rack Capacity Lb 6000
Truckload Qty 53ft Trailer 540

Options

Molded-In Logo

Molded-In Logo identification is a type of permanent identification that is molded into product. Original artwork must be supplied to ORBIS at the time of the order. Availability, requirement, and location for the molded-in identification can vary for each product.

Pallet Hot Stamp

Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.

Track and Trace

Offers ability to be tracked with GPS, RFID, BLE, bar code scanning or a hybrid solutions of these technologies.
