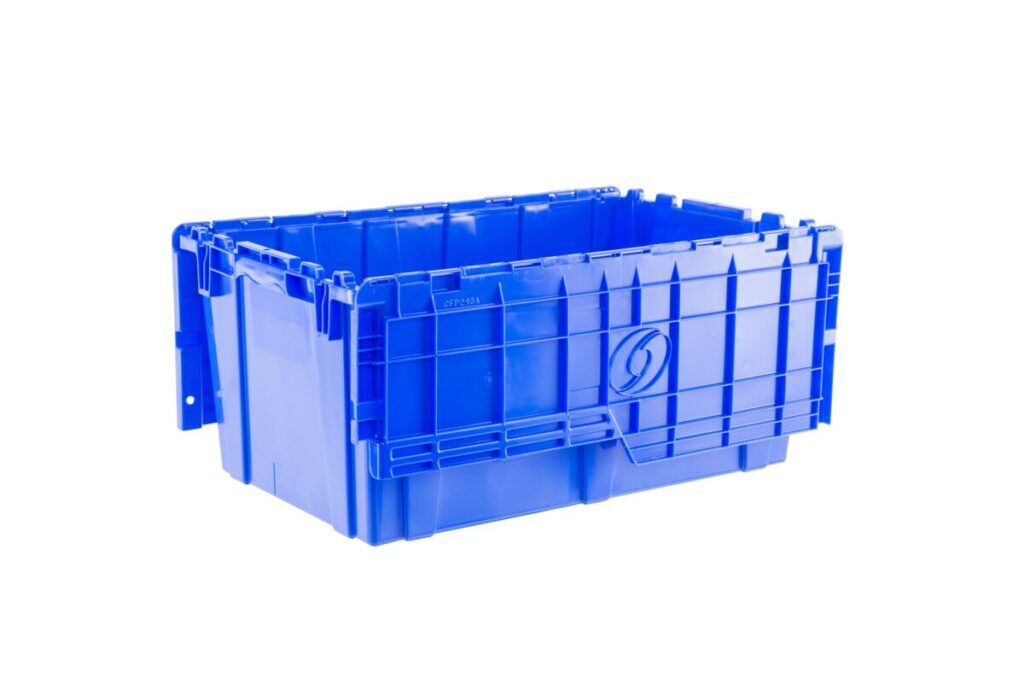

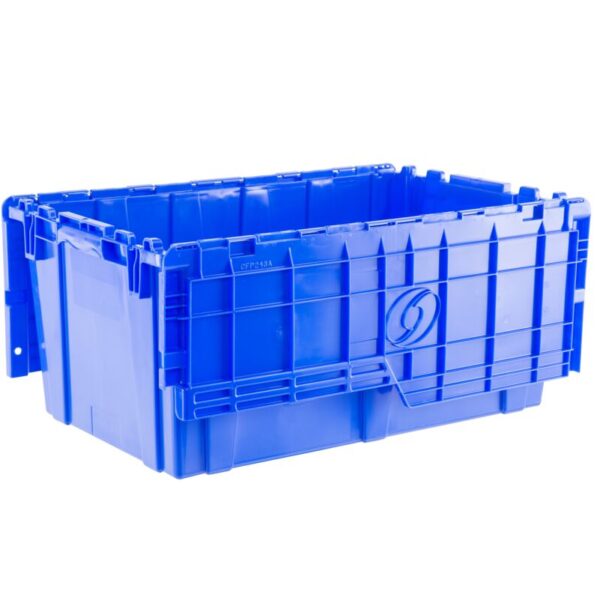

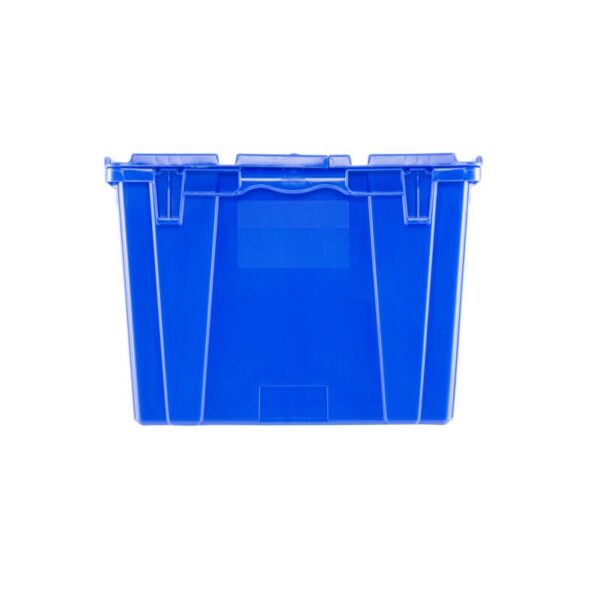

FP243
The FP243 drives efficiency in all types of distribution applications. These reusable totes stack when closed and nest when open for space-saving storage and return. With lockable, hinged lids that prevent the costly loss of product, these attached-lid containers are the ideal solution for split-case picking and shipping. The durable construction and superior design of these reusable containers ensure a long service life, providing an excellent return on investment and reduced distribution cost per trip when compared to corrugated boxes. Dimensional consistency for repeatable performance in automated systems. This FliPak is fully recyclable at the end of its service life.
- 26.9 x 16.9 x 12.1 footprint
- Plastic or metal hinge

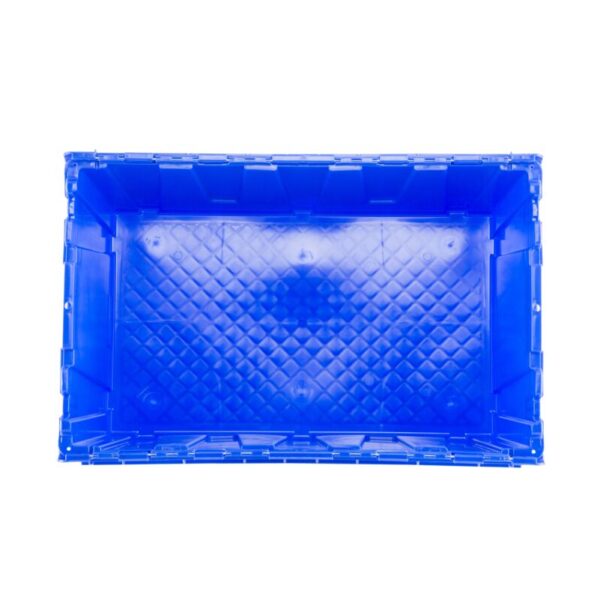

- Textured bottom
- Contoured handles for easy handling
- Solid, drain hole, or plus-grid bottom style
- Injection molded
- Quick-release label area on attached hinged cover and ends for easy reading and quick label exchange
- Offers system efficiency with NEW tab on lid that snaps easily into place to keep lid closed on conveyors
- Molded-in 1/4″ or 3/8″ diameter reinforced holes for standard security ties
- Truckload quantity for metal hinge: 4,000
- Used for the distribution of automotive aftermarket products
Specifications
| Outside Top Length In | 26.9 |
| Outside Top Width In | 16.9 |
| Outside Bottom Length In | 24.4 |
| Outside Bottom Width In | 14.7 |
| Inside Top Length In | 25.2 |
| Inside Top Width In | 15.5 |
| Inside Bottom Length In | 23.6 |
| Inside Bottom Width In | 13.9 |
| Total Container Height In | 12.1 |
| Prod Clearance In | 11.05 |
| Weight Lb | 7.8 |
| Volume Cu Ft | 2.3 |
| 53 Trailer Qty | 3520 |
Metal Hinge
Metal hinge on FliPak totes.
Plastic Hinge
Plastic hinge on FliPak totes. Available for use in metal-free facilities.
Molded-In Reinforced Holes
Molded-in reinforced holes for standard security ties.
Snap Feature
Molded-in tab that keeps FliPak lids closed for efficient conveyance.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
Cardholders
Polypropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
Container Hot Stamp
Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.
Sequential Numbering Hot Stamp
Specialty hot-stamp available with each character limited to a 1/2" height and 5 characters per line. The requirements for the area and location for sequential numbering varies for each container.
