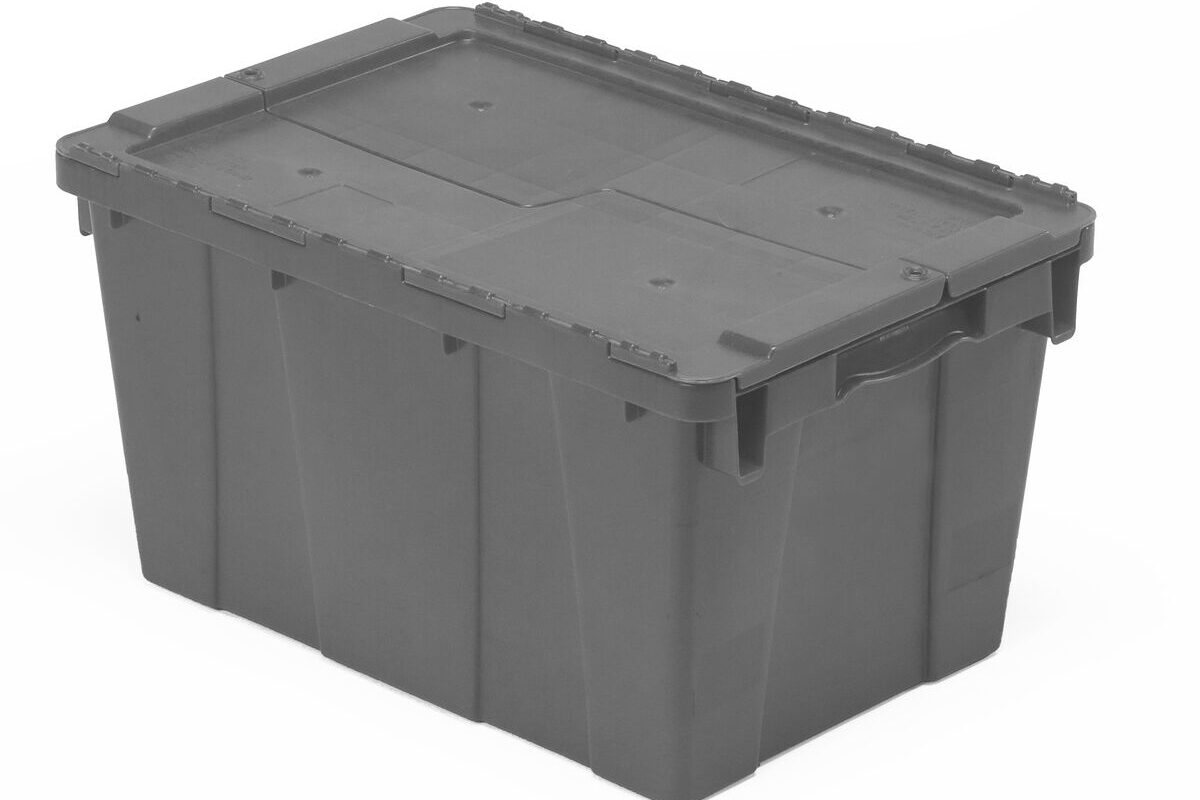

FP19
The FP19 drives efficiency in all types of distribution applications. These reusable totes stack when closed and nest when open for space-saving storage and return. With lockable, hinged lids that prevent the costly loss of product, these attached-lid containers are the ideal solution for split-case picking and shipping. The durable construction and superior design of these reusable containers ensure a long service life, providing an excellent return on investment and reduced distribution cost per trip when compared to corrugated boxes. Contoured handles for easy handling and dimensional consistency for repeatable performance in automated systems. This FliPak is fully recyclable at the end of its service life.
- 23.5 x 15.7 x 13.0 footprint
- Textured bottom
- Solid, drain hole or plus-grid bottom style
- Injection molded
- Used for the distribution of health and beauty care items and pharmaceuticals
- Quick-release label area on attached hinged cover and ends for easy reading and quick label exchange
- Molded-in 1/4″ or 3/8″ diameter reinforced holes for standard security ties
- Bi-colors available
Specifications
| Outside Top Length In | 23.5 |
| Outside Top Width In | 15.7 |
| Outside Bottom Length In | 19.9 |
| Outside Bottom Width In | 13 |
| Inside Top Length In | 21 |
| Inside Top Width In | 14.2 |
| Inside Bottom Length In | 19.2 |
| Inside Bottom Width In | 12.4 |
| Total Container Height In | 13 |
| Prod Clearance In | 11.7 |
| Weight Lb | 6.9 |
| Volume Cu Ft | 1.9 |
| 53 Trailer Qty | 3960 |
Metal Hinge
Metal hinge on FliPak totes.
Molded-In Reinforced Holes
Molded-in reinforced holes for standard security ties.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
Cardholders
Polypropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
Container Hot Stamp
Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.
Sequential Numbering Hot Stamp
Specialty hot-stamp available with each character limited to a 1/2" height and 5 characters per line. The requirements for the area and location for sequential numbering varies for each container.
Long Side Banding Slot
Molded-in notch, on long side of tote, to accommodate banding.
