FP183

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

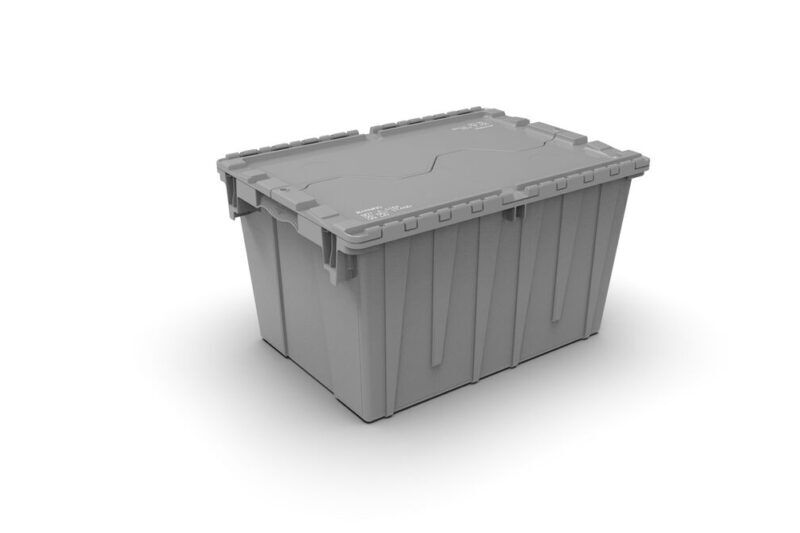

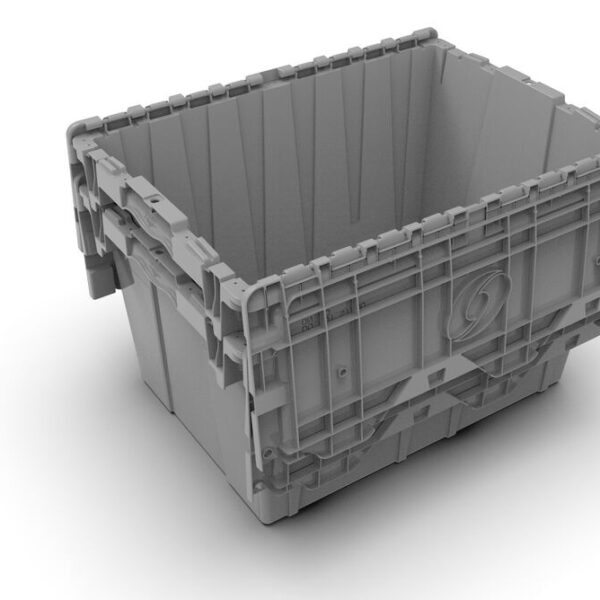

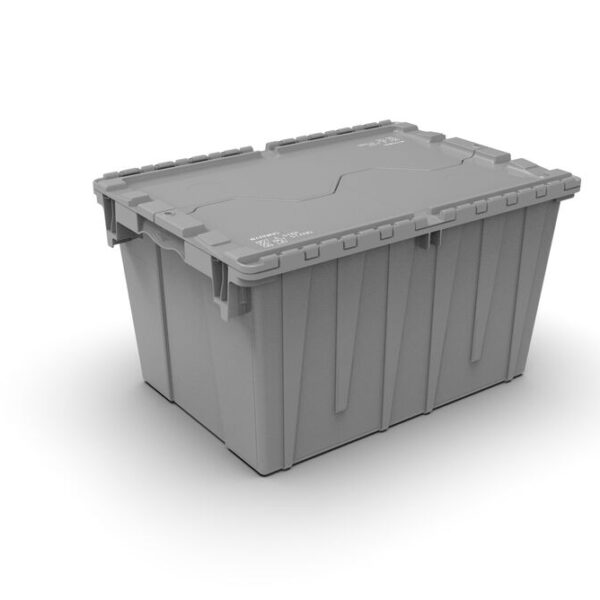

ORBIS FP183 offers a new, innovative plastic hinge option for split case picking and other applications. The FP183 is ideal for grocery, wholesale, and med surge distribution and accommodates all types of product in many work-in-process, picking, storage, and distribution applications. This reusable plastic attached-lid container takes the place of corrugated shipping boxes, for long-term packaging savings. In addition, all FliPak containers offer facility cleanliness by eliminating fiber and dust. Like all FliPak containers, the FP183 stacks when full and nests when empty for the most efficient use of available space.

  • 21 x 15 x 12 footprint
  • Reinforced security tie area
  • Teeth snap easily into place and keep lid closed on conveyors
  • Ability to be banded across length or width of tote
  • Compatible with other totes of similar size
  • Increased handle space when nested
  • Optimized nest ratio: 5,808 pieces
  • 2.5 Nest Stop version available and fits 4,488 units per truckload
  • Plastic or metal hinge
  • Solid, drain hole, or plus-grid bottom style

Specifications

Outside Top Length In 21.8
Outside Top Width In 15.5
Outside Bottom Length In 18.7
Outside Bottom Width In 12.9
Inside Top Length In 19.8
Inside Top Width In 14
Inside Bottom Length In 18.2
Inside Bottom Width In 12.4
Total Container Height In 12.3
Prod Clearance In 11.2
Weight Lb 5.7
Volume Cu Ft 1.7
53 Trailer Qty 5808

Options

Metal Hinge

Metal hinge on FliPak totes.

Plastic Hinge

Plastic hinge on FliPak totes. Available for use in metal-free facilities.

Molded-In Reinforced Holes

Molded-in reinforced holes for standard security ties.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Cardholders

Polypropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

Container Hot Stamp

Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.

Short Side Banding Slot

 Molded-in notch, on short side of tote, to accommodate banding.

Long Side Banding Slot

Molded-in notch, on long side of tote, to accommodate banding.

Compatible With

40 x 48 XP Economy-193

Size (IN) : 48  x  40  x  5.75

40 x 48 XP Heavy Duty-195

Size (IN) : 48  x  40  x  5.8

Similar Products

FP60-2272

Size (IN) : 30  x  22  x  20.5

FP403-2271

Size (IN) : 27.9  x  20.9  x  15.2

FP182-2261

Size (IN) : 21.8  x  15.2  x  12.9

FP38-2269

Size (IN) : 32  x  18  x  14.9

FP32-2268

Size (IN) : 39.3  x  14  x  12

FP261-2267

Size (IN) : 23.9  x  19.6  x  12.6

FP244-2266

Size (IN) : 26.9  x  16.9  x  12.6

FP243-2265

Size (IN) : 26.9  x  16.9  x  12.1

FP22-2264

Size (IN) : 21.8  x  15.2  x  17.1

FP19-2263

Size (IN) : 23.5  x  15.7  x  13
