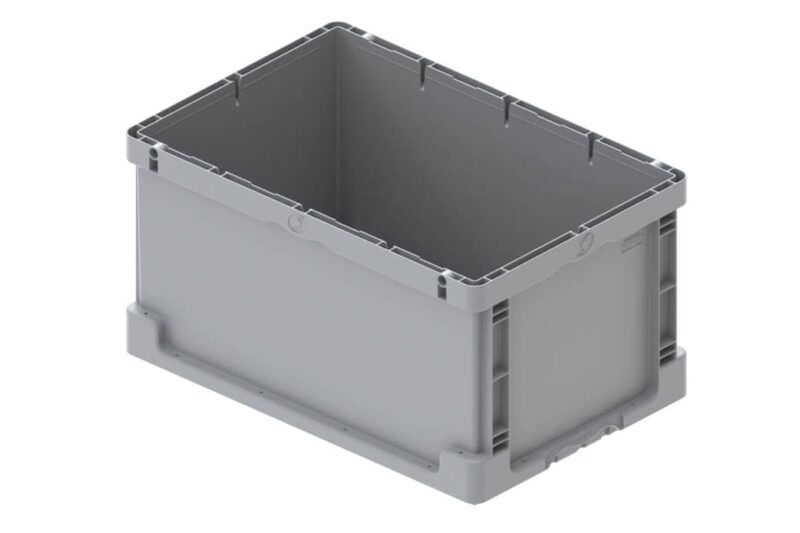

ML6040-325
ORBIS AROS® automated system containers are designed for seamless integration into automated storage systems. The plastic, fully reusable ORBIS ML6040-325 tote was designed specifically to interface with many types of systems. It offers a dual-sided divider system that locks dividers in place on the top and bottom of the container, to eliminate divider movement and prevent product shift. Dividers are engineered to fit seamlessly into the grid, or hybrid, container bottom and can create up to eight different cells for different part sizes or batches. ORBIS containers are precisely molded to interface seamlessly with automation and reduce system downtime found with inconsistent package design. The ML6040-325 is available with a smooth bottom if compartmentalization is not required. *Please note that ORBIS publishes the specifications for this product line in inches, but the model name does not correspond to inches. This system was designed on a metric footprint and the model name reflects this.
- Compliant with FM Global Data Sheet 8-34
- Fingertip handles for easy manual handling
- Smooth walls allow automation to lift totes under the rim
- Flat corners interface seamlessly with automation guides
- Automation locators ensure proper tote placement
- Hybrid bottom option offers superior strength in a single piece with a smooth bottom perimeter ensures smooth conveyance
- Drain holes are offset to avoid system misreads
- Beveled bottom edges promote smooth movement over conveyor rollers and transitions
- Optional dividers are easily configured to organize product and are secured at the top and bottom
- ID options include barcode locations
- Fully recyclable at the end of its service life
- Smooth or hybrid bottom styles available
- Specifications listed are for smooth bottom version
Specifications
| Outside Top Length Mm | 600 |
| Outside Top Width Mm | 400 |
| Outside Bottom Length Mm | 600 |
| Outside Bottom Width Mm | 400 |
| Inside Top Length Mm | 568 |
| Inside Top Width Mm | 368 |
| Inside Bottom Length Mm | 560 |
| Inside Bottom Width Mm | 360 |
| Total Container Height Mm | 325 |
| Product Clearance Mm | 320 |
| Weight Kg | 2.5 |
| 53 Trailer Qty | 1200 |

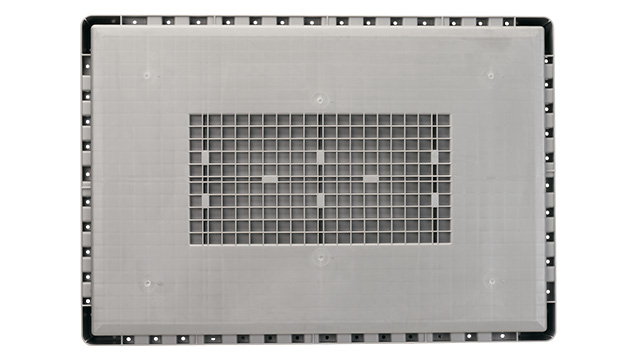

Hybrid Bottom
Blend of grid and smooth bottom for AROS totes.
Smooth Bottom
Full smooth surface available on container bottom.
Dividers
Retrieving data. Wait a few seconds and try to cut or copy again.
Cups
Removable cups provide flexiblity to standard AROS totes. Use cups to divide totes into eighths, quarters or half.
