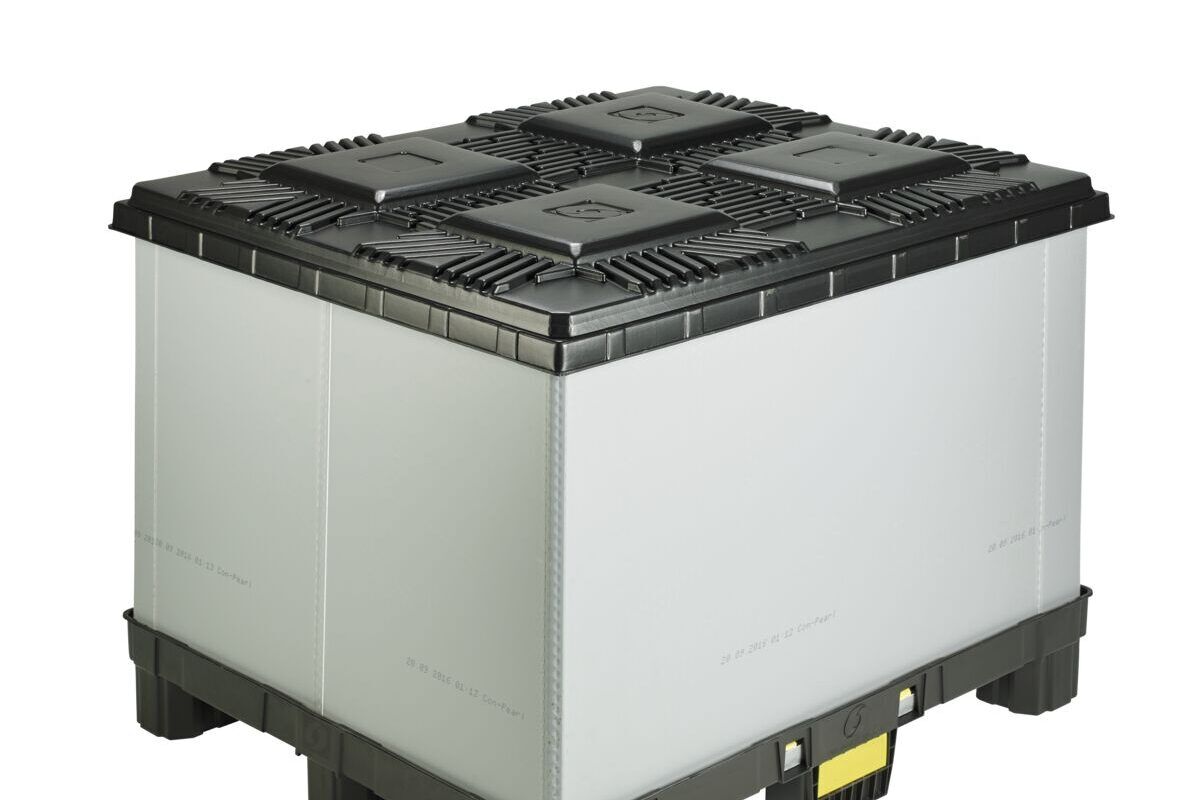

OPTEBULK 1200 x 1000 x 896

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.
ORBIS offers the 1200 x 1000 OPTEBULK, a pallet, top-cap, and sleeve system to its suite of reusable plastic bulk solutions. The 1200 x 1000 sleevepack supports efficient storing and distributing primary packaging products, including beverage preforms, caps, and closures. The top frame and pallet nest together for secure stacking, maximizing space in tight manufacturing areas.

  • Clamshell design ideal for reverse logistics
  • One-person assembly and collapse
  • Lightweight design and active latch technology
  • Fully self-contained system when collapsed
  • 50% more collapsed sleeve packs per trailer than alternative bulk container systems (330 per truckload)
  • High cubic capacity and low tare weight, allowing for more product to be shipped before weighing out a truck
  • Ideal for both manual and automated environments

Specifications

Outside Length In 48.3
Outside Width In 41.5
Outside Height In 35.3
Inside Length In 45
Inside Width In 37.1
Prod Clearance In 27.3
Collapsed Height In 8.3
Max Container Cap Lb 800
Internal Volume Cu Ft 26.4
Max Stacked Capacity Lb 3000
Weight 40x48
Maximum Loaded Stack 4
Return Ratio 4:01
53ft Trailer Qty Assembled 90
53ft Trailer Qty Collapsed 360

Options

Pallet Hot Stamp

Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.
