HDMP4845-50

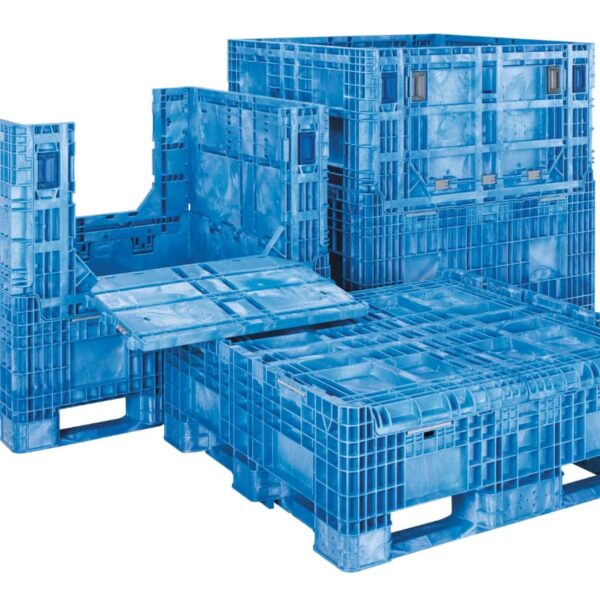

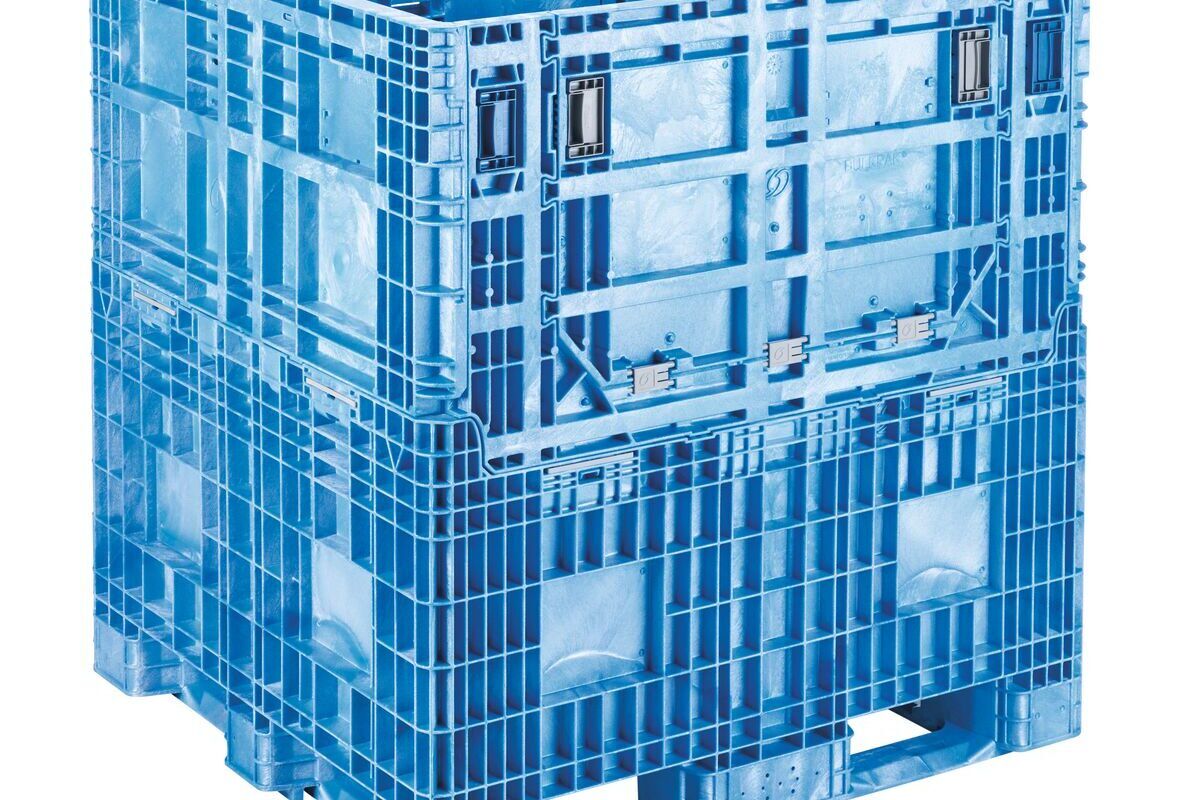

The HDMP4845-50 offers several key new features for superior performance. The family of ORBIS HDMP4845 BulkPaks offers an improved total cost of ownership with an enhanced corner wrap-around design, larger access doors, upgraded hinges, and universal latches. The heavy-duty BulkPak 4845 HD Series is used extensively by the automotive industry, as it meets the specifications of the Automotive Industry Action Group (AIAG). Unitized loads can be delivered directly to the assembly line for immediate part presentation, with no unwrapping or unbanding. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other. Palletized container loads can be stacked with the BulkPak, for greater shipping efficiency. Based on the standard AIAG footprint, these bulk containers are designed and constructed to efficiently move, store and ship components. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective ORBIShield dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)
- Largest access doors in the industry
- Wrap-around corner design and vertical strength unprecedented durability
- Industry-leading hinges feature three points of engagement to secure access doors to the panels.
- Robust two-piece spring-loaded universal latch for added strength and security 45 x 48 x 50 footprint
- Structural-foam molded in high-density polyethylene
- Container capacity: 1500 lbs
- Base: All-plastic perimeter stringer bottom
- Deck: Solid with drain holes
- Sidewalls: Solid
- Popular applications: automotive, appliance, and transportation equipment
Specifications
| Outside Length In | 48 |
| Outside Width In | 44.5 |
| Outside Height In | 50 |
| Inside Length In | 44.5 |
| Inside Width In | 41.4 |
| Prod Clearance In | 42.9 |
| Collapsed Height In | 28.4 |
| Container Capacity Lb | 1500 |
| Weight Lb | 167.9 |
| Maximum Loaded Stack Static | 4 |
| Maximum Loaded Stack Dynamic | 2 |
| Return Ratio | 1.5:1 |
| Door Openings Long H In | 31.5 |
| Door Openings Long W In | 21.3 |
| Internal Volume Cu Ft | 45.7 |
| 53ft Trailer Qty Assembled | 56 |
| 53ft Trailer Qty Collapsed | 84 |
Cardholders
Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
ID Plates
Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
Placard Boards
Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
