Description

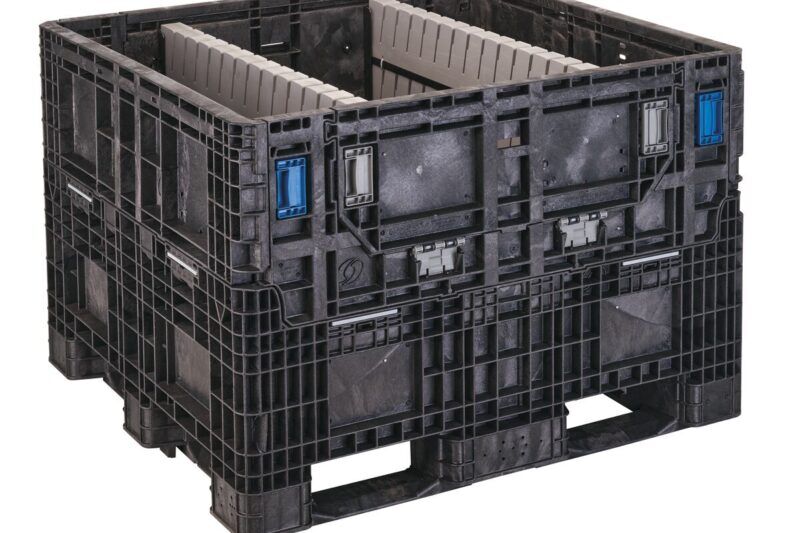

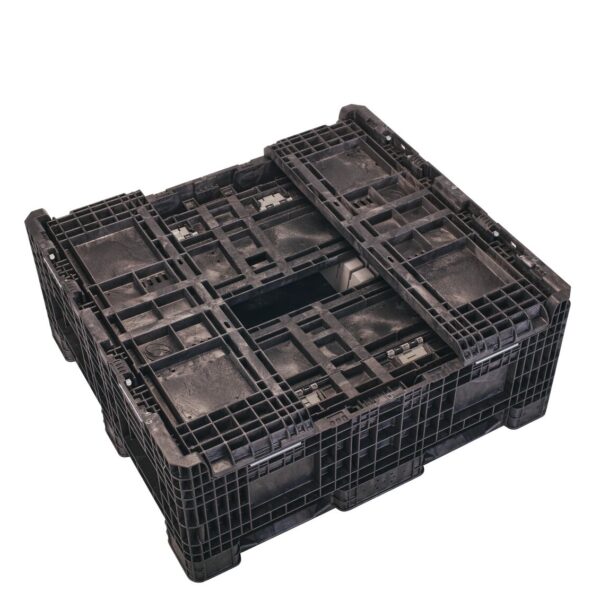

The BulkPak HDMP 48×45-338 container, features a height of 33″ and 8″ of bottom storage. This innovative design offers numerous benefits for streamlined shipping, safeguarding custom dunnage within the container, and efficient storage. The HDMP 48×45-338 container is specifically engineered to maximize space utilization in a 53′ trailer, with the ability to accommodate up to 28 positions. The unique feature of the 8″ bottom storage can be utilized for protecting custom dunnage when collapsed which offers shipping advantages. By utilizing the storage bottom, the HDMP 48×45-338 container can still collapse while securely holding the dunnage. This allows for an impressive 140 collapsed containers to fit in a standard 53′ trailer, a substantial increase compared to the 84 standard and non-collapsed HDMP 48×45-34 containers that lack storage room for dunnage. This container seamlessly integrates with all other 48×45 bulk containers, providing versatility and compatibility. It offers the option of O or 2 access doors for the long side measuring 48”. The base features an all-plastic perimeter stringer bottom, ensuring durability and longevity. The solid deck includes drain holes and corrugated sidewalls, further enhancing functionality. With a load capacity of up to 1,800 lbs, this container is designed to handle heavy-duty applications. Its one-piece base construction guarantees superior strength and reliability. Our team of experienced design engineers is dedicated to providing you with the optimal dunnage solution tailored to your specific requirements.

Maximizes space utilization in a 53’trailer, accommodating up to 28 positions and allowing for 140 collapsed containers.
Unique bottom storage feature protects custom dunnage for shipping advantages.
Seamless integration with all other 48×45 bulk bins for versatility and compatibility.
Heavy-duty design with a load capacity of up to 1,800 lbs for superior strength and reliability.
For added protection and security, the CKD 48×45 cover is compatible with this container.

Additional information

Weight	123 lbs
Dimensions	48 × 45 × 33 in
Outside Length (in.)	48
Outside Width (in.)	45
Outside Height (in.)	33
Collapsed Height (in.)	20.4
Inside Length (in.)	44.6
Inside Width (in.)	41.4
Weight (lb.)	123.0
53 ft. Trailer Qty (Assembled)	84
53 ft. Trailer Qty (Collapsed)	140
Load Capacity (lb.)	1800
Internal Volume (cu. ft.)	27.7
Prod Clearance (in.)	26.0
Maximum Loaded Stack (Static)	6
Maximum Loaded Stack (Dynamic)	3
Return Ratio	1.6:1
Access Door Openings Long (H) (in.)	11.6
Access Door Openings Long (W) (in.)	31.5
