HDRS3016-19

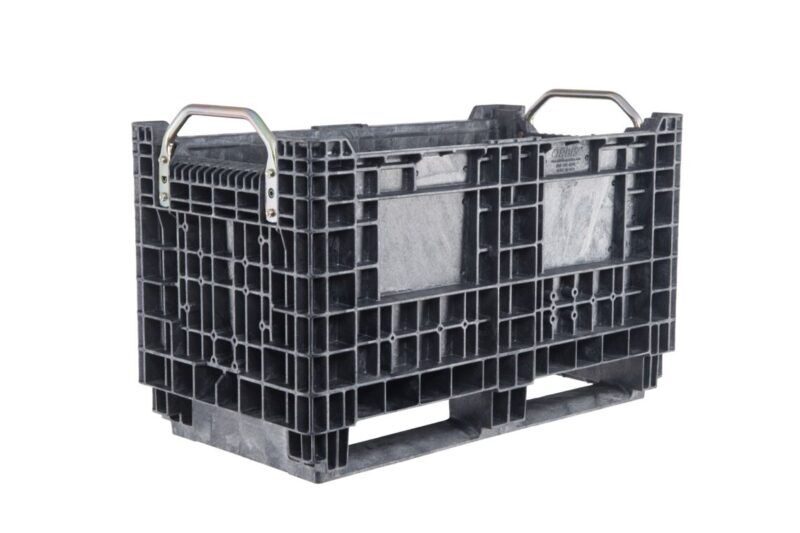

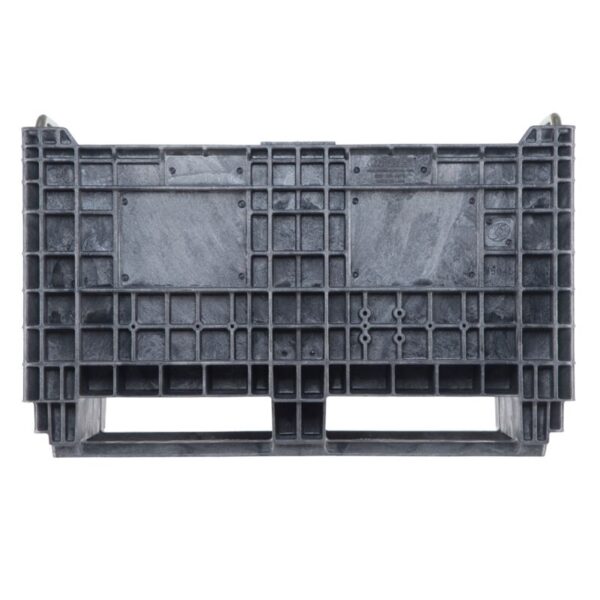

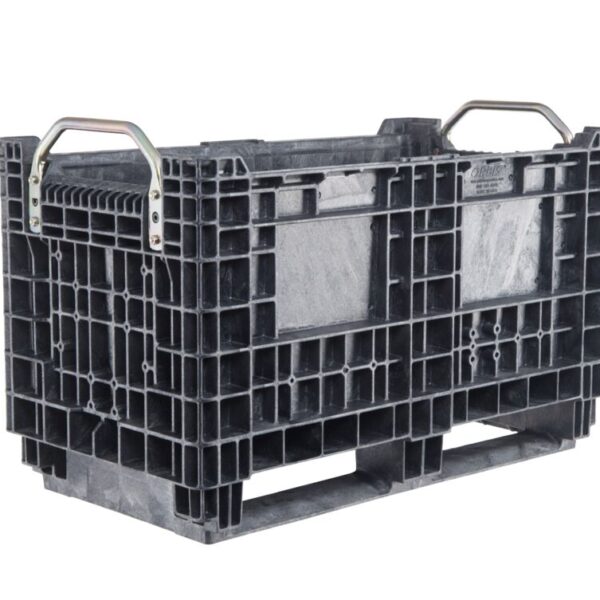

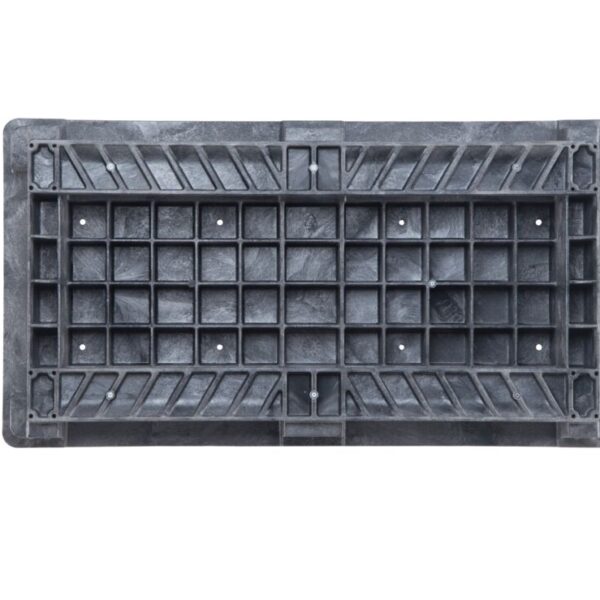

The heavy-duty HDRS3016-19 BulkTote is ideal for metal stampings and other heavy, dense components. Designed to hold 500 lbs, this reusable 30″ x 16″ bulk container is built for long-lasting durability in heavy-duty applications and is the first of its size to offer 4-way fork truck entry for easy handling and versatile line-side part delivery. The internal capacity of traditional handheld and collapsible bulk containers can be underutilized when holding heavy, dense parts due to high-weight loads or slower-turning SKUs. With the BulkTote, line side space can be reduced to nearly half while delivering the same amount of product to the line or doubling the amount of SKUs in the same 32 x 30 line side footprint. The BulkTote replaces wire baskets, steel tubs, or wood/corrugated packaging with a fully reusable handling solution. Weighing just 30 pounds when empty, the one-piece BulkTote is also easy to manually handle while providing a durable and robust design.
- Unique fork opening at the top of the container offers the ability to present the short side to the assembly line
- Better use of internal capacity optimizes the number of parts delivered to the line

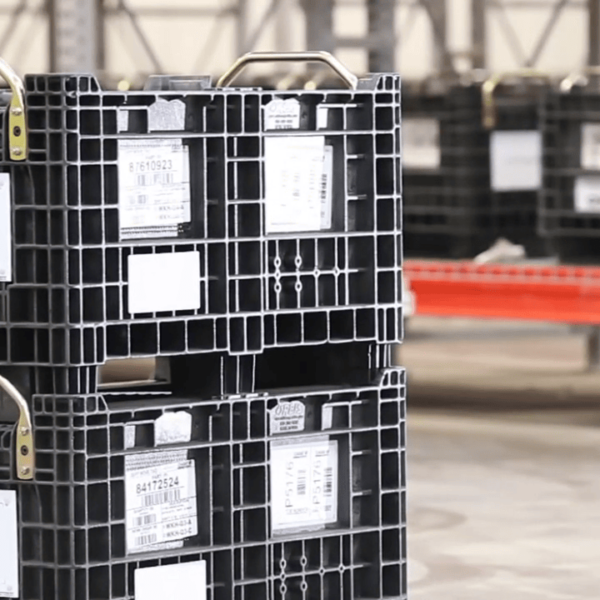

- Wide stacking ridge allows for secure load stacking
- Structural foam molded in high-density polyethylene (HDPE)
Specifications
| Outside Length In | 30 |
| Outside Width In | 16.1 |
| Outside Height In | 19.2 |
| Inside Length In | 26.7 |
| Inside Width In | 13.1 |
| Prod Clearance In | 11 |
| Container Capacity Lb | 500 |
| Weight Lb | 29.4 |
| Maximum Loaded Stack (Static) | Optional |
| Maximum Loaded Stack Dynamic | 2 High |
| 53ft Trailer Qty Assembled | 702 |
Cardholders
Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
ID Plates
Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
Placard Boards
Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
