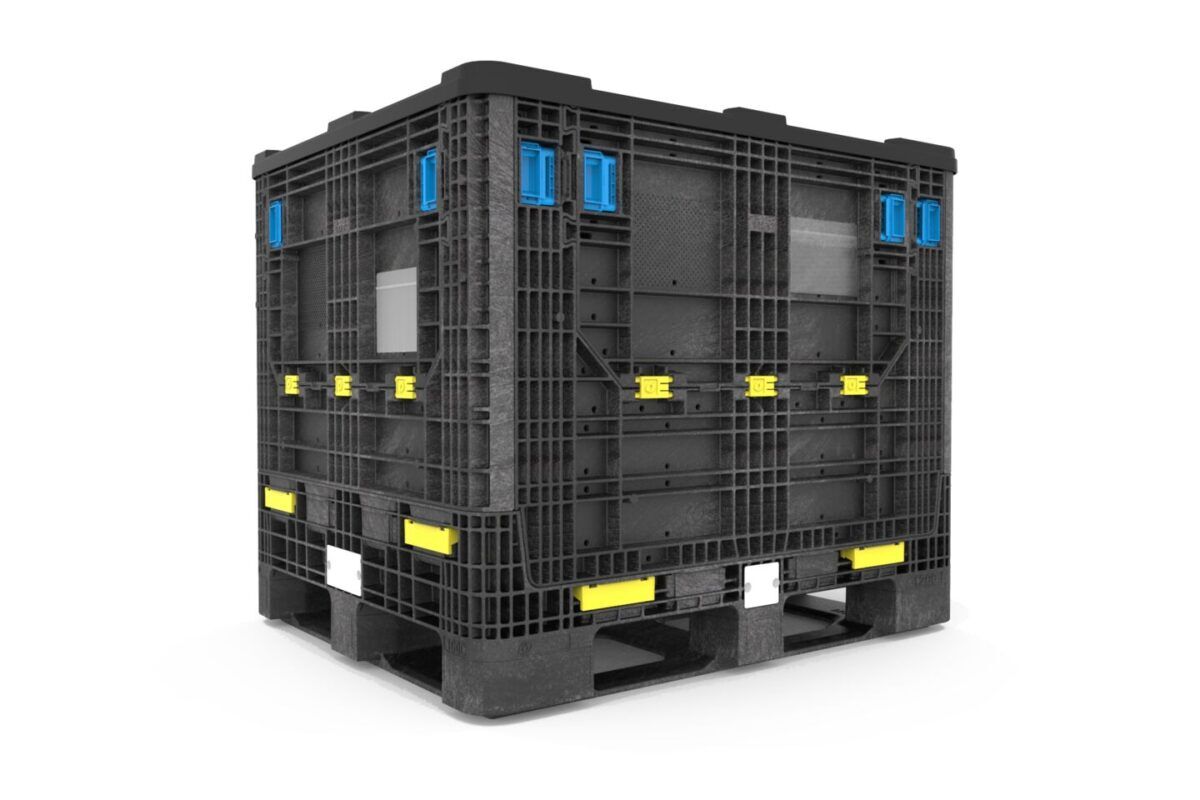

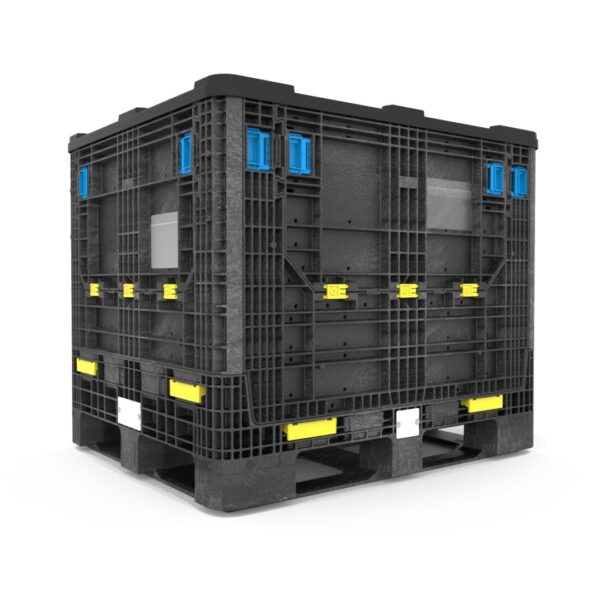

HDB1210-980
The HDB1210 GitterPak system was designed to protect and transport parts in global automotive and industrial applications. Engineered to emphasize durability, repairability, and warehouse and logistic cost savings due to collapsibility, these reusable containers provide a heavy-duty alternative to steel tubs, stillages, wood crates, and other alternative packaging systems. Combined with a collapsible, all-plastic heavy-duty container design, the HDB1210-980 provides a lower total cost of ownership, with an attractive ROI. Unlike fixed wall steel stillages, ORBIS heavy-duty GitterPak containers collapse and stack securely with each other for warehouse space savings and reduced return transportation costs during storage and return shipment. The HDB1210-980 features large access doors provide excellent interior access as well as improved ergonomics for operator safety. Combined with the multiple available door configurations and heights, the new ORBIS GitterPak provides a customizable packaging solution to suit your operations needs.
- Reduce product damage with an all-plastic construction
- Long service life with a structural-foam molded construction in high-density polyethylene
- Holds up to 900 kg
- Lower total cost of ownership for an attractive ROI
- Reduced return freight costs, with a higher ratio of collapsed bins versus non-collapsible steel bins
- Enhanced reparability features deliver easy, on-site repair

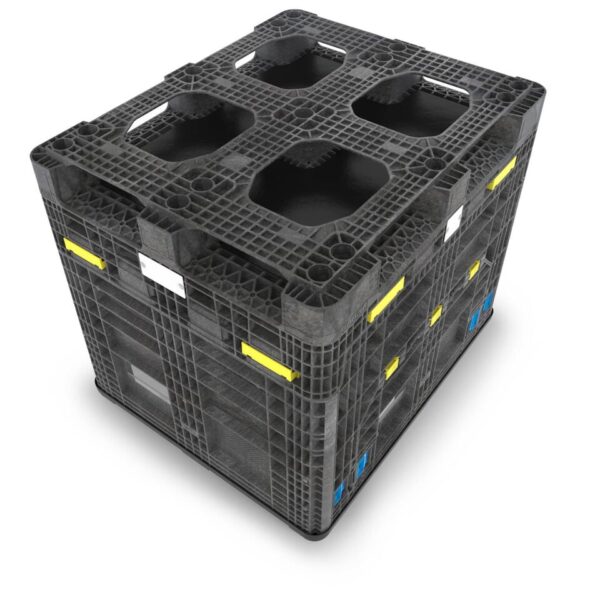

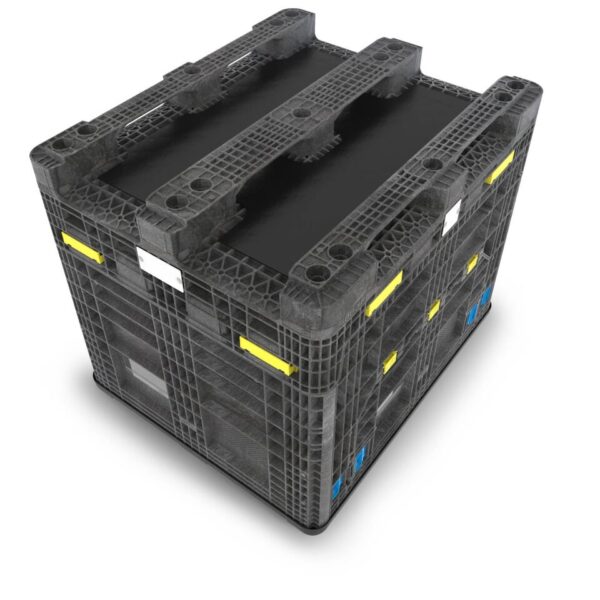

- Improved versatility with multiple heights (582mm, 732mm, 870mm, and 980mm); full stringer or 3 stringer bottom and 0, 1, or 2 access doors
- Manufactured in Europe. US orders may have minimum quantity requirements and extended lead times
Specifications
| Outside Length In | 47.2 |
| Outside Width In | 39.4 |
| Outside Height In | 38.6 |
| Inside Length In | 43.8 |
| Inside Width In | 35.9 |
| Prod Clearance In | 32.8 |
| Collapsed Height In | 12.5 |
| Container Capacity Lb | 1984 |
| Weight Lb | 152 |
| Maximum Loaded Stack Static | 5 High |
| Maximum Loaded Stack Dynamic | 2 High |

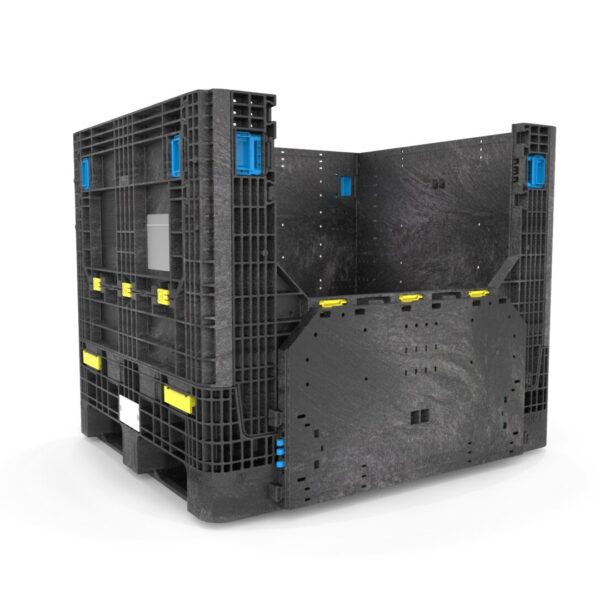

| Door Openings Long H In | 18.6 |
| Door Openings Long W In | 35.4 |
| Door Openings Short H In | 18.6 |
| Door Openings Short W In | 16.5 |
Cardholders
Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
ID Plates
Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
Placard Boards
Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
